Tags

Filter the live tag manifest, inspect protocol-facing values, and export CSV or platform-ready tag files from the Miravo Console.

The /tags route shows the live tag manifest for the running environment.

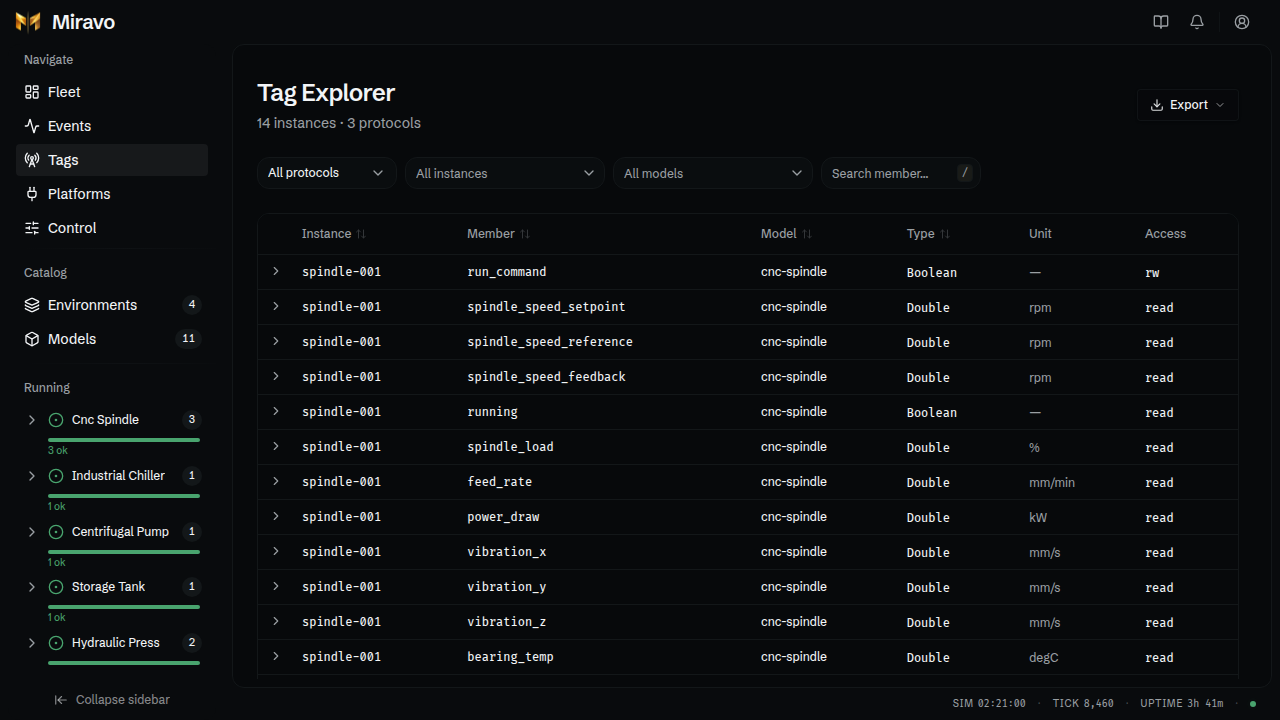

Miravo Console Tag Explorer
Tags exposes one table for MQTT topics, OPC UA NodeIds, and Modbus registers.

Filters

Filter by:

  • protocol
  • instance
  • model
  • member name

Use / to focus member search.

Rows expand to show protocol-specific addresses:

  • MQTT topic
  • OPC UA NodeId
  • Modbus register

Export

Use Export to download the current table as CSV.

When a protocol filter is active, the CSV includes only that protocol's address columns. Without a protocol filter, the CSV includes all enabled protocol address columns.

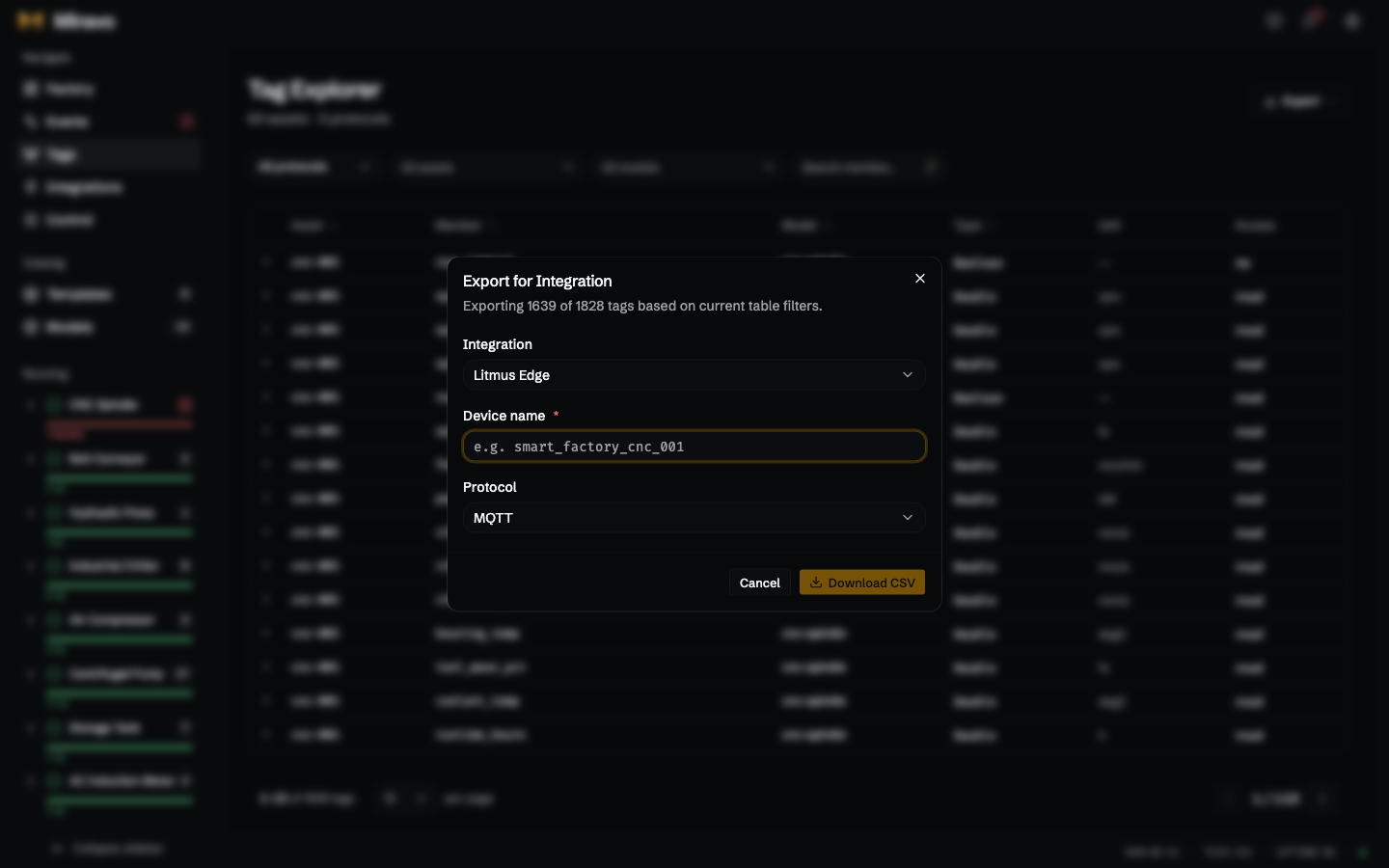

Use Export for Platform… to download a platform-specific tag file. For Litmus Edge, enter the DeviceHub device name, choose a protocol, and download a CSV for bulk import.

Table filters narrow platform export scope. Clear filters before exporting the full live manifest.
